Maneuverability
Compact. Reactive. Built to rotate.
A shorter, wider outline tuned for freestylers and freeriders who want ultimate maneuverability — quick transitions, tight turns and confident recoveries.

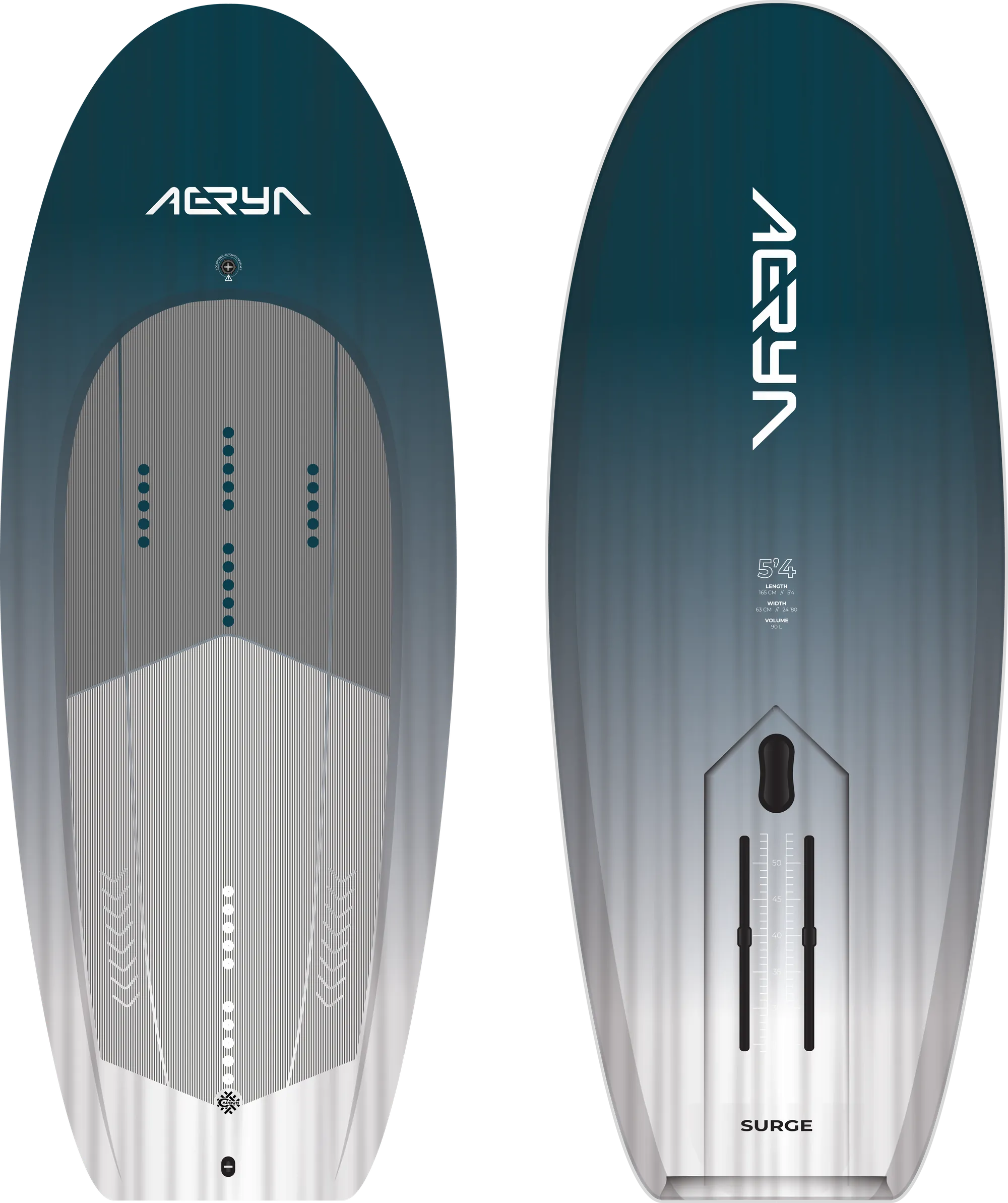

Aeryn Surge Carbon · 2026
Surge Carbon
The Surge board is designed for riders seeking maximum compactness. It is dedicated to freestylers and freeriders looking for ultimate maneuverability.
The Surge Carbon. Freestyle / Freeride.
Construction
- Traction EVA Pad
- Carbon + PVC + Kevlar Sandwich
- Fiberglass-Reinforced Footstrap Plugs
- Fiberglass-Reinforced Foil Tracks
This size
- Volume
- 110.0 L
- Length
- 172.0 cm · 5'8"
- Width
- 64.5 cm
All sizes
In the box
- Board with traction pad
- US foil track compatible
Board Size Finder
Find your recommended board volume based on rider weight and skill level.
| Rider Weight | Beginner | Intermediate | Advanced |
|---|---|---|---|
| 50–59 kg | ~95 L | 65–75 L | 55 L min |
| 60–69 kg | ~105 L | 75–85 L | 65 L min |
| 70–79 kg | ~115 L | 85–95 L | 75 L min |
| 80–89 kg | ~125 L | 95–105 L | 85 L min |
| 90–99 kg | ~135 L | 105–115 L | 95 L min |
| 100+ kg | ~145 L | 115–125 L | 105 L min |
Recommendations are a starting point - volume and shape should be tuned to your riding style and conditions.
Construction
Carbon stiffness. Planted underfoot.
The same carbon sandwich as the Flux, in a compact platform that stays direct through hard landings and aggressive carving.
Details
What defines the Surge Carbon.
Outline
Maximum compactness
Shorter lengths and generous width for quick rotation and stable landings.
Construction
Carbon + PVC + Kevlar
Impact-resistant build that shrugs off hard freestyle sessions.
Tracks
Reinforced foil tracks
Locked foil position when you're pushing hard through transitions.
Deck
Traction EVA pad
Full coverage grip for confident foot placement at every angle.
Rails
Bi-axial carbon
Stiff rails translate input instantly — no lag between body and board.
Range
60–110 L
Four sizes from light riders to powered freestyle — pick the volume that matches your style.
Explore the range
The carbon shapes.
Want more glide and range? The Flux handles all-round freeride. Chasing downwind lines? The Flow is tuned for endless glide.
Wingfoil Boards
Ride the Difference
Understanding how a hydrofoil board is shaped, built and sized is the key to choosing the right one for your riding.
Volume — The Golden Rule
From rocker to volume, every dimension changes how the board feels on the water and how it works with your foil.
- Beginner: weight + 40 L — — maximum stability, early take-offs, forgiving touchdowns
- Intermediate: weight + 10 to 20 L — — balanced freeride length, responsive without sacrificing stability
- Advanced: equal to weight — — dynamic carves, tighter turns. Never go below your weight in kilos
- Race / Light-wind: weight + 50 L — — maximum early planing
Mid-Length Design
All Aeryn boards use a mid-length design: longer (170–190 cm) and narrower than traditional wing boards. More length = earlier release, better glide, smoother touchdown recovery. A trend proven by downwind SUP foiling, now standard across freeride, freestyle and surf.
Width
A wider board is more stable and easier to balance on while you learn; a narrower board is more agile and easier to pump.
Rocker
The curve of the board from nose to tail. More rocker helps touch-and-go and reduces nose-pearling; less rocker is faster and smoother.
SURGE Carbon
Shaped for wave riding and surf-style carving.
FLUX
The versatile everyday board for progressing riders.
FLUX Carbon
Lighter and stiffer for better pump and response.
FLOW Carbon
Built for speed, glide and long-distance performance.
FLUX Inflatable
Drop-stitch construction that packs small without giving up stability.
FLOW Inflatable
Race-minded performance in a packable inflatable.
Trainer
Generous volume and width for maximum stability and the easiest first flights.
Carbon
Lightweight, stiff and highly responsive - the choice for performance and pump.
- High-modulus carbon laminate
- PVC core with reinforced rail and mast-box zones
- Low weight for easy pumping and handling
- Premium finish
Inflatable
Durable, portable and beginner-friendly construction.
- Drop-stitch core for rigidity at low pressure
- Reinforced seams and rails
- Packs small for travel
- Forgiving on impact
Deck
The standing surface and its grip.
Volume
The board's displacement in litres (L). More volume means more float, stability and easier flight; less means more agility and speed.
Width
The board's beam in centimetres. Wider is more stable; narrower is more agile.
Rocker
The lengthwise curve of the board bottom. More rocker helps touch-and-go and reduces pearling; less rocker is faster.
Concave
A shallow channel in the bottom of the board that improves water flow and stability at take-off.
Cutouts
Scooped rails or notches that reduce the board's footprint in the water and ease release on take-off.
Foil Box
The recessed track that accepts the foil mast and lets you adjust its fore-aft position.
Footstrap Inserts
Threaded sockets in the deck that accept footstraps so you can tune your stance.
EVA Deck
The soft, grippy foam standing surface that cushions your feet and adds control.
Aeryn
Translation missing: en.Foil Glossary
The foil glossary
Mast
The vertical piece connecting the board to the fuselage. Determines flight height. Standard: 70 cm (beginner), 75–85 cm (all-around).
Front Wing
The main lift generator. Surface area (cm²) and aspect ratio define take-off ease, speed and glide. MA = entry/freeride, MHA = versatile, HA = glide/downwind.
Fuselage
The horizontal bar linking front wing to stabilizer. Shorter = tighter turns (freestyle). Longer = better tracking (downwind).
Stabilizer
The small rear wing that balances the foil in flight. Larger = more stability. Smaller = looser, more responsive.
Aspect Ratio
Wingspan² ÷ surface area. Low AR (≤6): compact, maneuverable, forgiving. High AR (≥8.5): fast, efficient glide, better upwind. Medium AR (~7): versatile all-around.
Aluminium & Carbon
Aluminium: affordable, impact-resistant, ideal for learning. Carbon: lighter, stiffer, earlier take-off, more responsive. Best for intermediate+ riders.
Disciplines
Freeride: everyday riding, cruising, progression. Freefly: riding swell with the wing flagged. Wing Surf: waves with the wing in hand. Freestyle: jumps, rotations, tricks. Racing: speed on a course.
Pumping
Leg-driven motion to generate or maintain speed without wind or wing propulsion. Essential for dock starts, connecting waves, and downwind glides.
Jibe & Tack
Jibe: downwind turn, changing direction with the wind at your back. Tack: upwind turn, passing through the wind.
Stall
Loss of lift causing the foil to sink. Happens when speed drops below the foil's minimum flight speed (typically ~5 knots).
Ride the difference
Push harder. Land cleaner.
Choose your size, set your foil and session — the Surge Carbon keeps freestyle and freeride direct underfoot.
